SABIC releases at JEC world 2018 results of lifecycle assessment of car doors made with UDMAX™ thermoplastic composite tape

SABIC, a global leader in the chemical industry, is releasing at JEC World 2018 in stand L84, hall 5, the results of a recent lifecycle assessment of passenger car side doors using hybrid material solutions including laminates made with its continuous fiber-reinforced thermoplastic composite (CFRTC), the UDMAX™ GPP 45-70 tape. The material system aims to help improve compliance with stringent energy and emissions regulations. The externally certified, cradle-to-grave life cycle assessment (LCA) found that doors made with the glass fiber polypropylene-reinforced composites outperformed metal car doors in two key environmental categories: global warming potential and cumulative energy demand. In addition to weighing significantly less than steel, aluminum and magnesium, the CFRTC parts deliver exceptional strength, corrosion resistance and the ability to be produced in high volumes using injection molding.

“Many countries, including China, Japan and several across the European Union, have announced they will tighten vehicle emissions regulations in the near future,” said Scott Fallon, global automotive leader, SABIC. “These impending changes add urgency to the need for advanced new material solutions that can reduce part weight without sacrificing performance.”

Nikhil Verghese, research fellow, Technology & Innovation at SABIC, added, “This lifecycle assessment demonstrates the effectiveness of SABIC’s industry-leading thermoplastic composites-based solution offering in reducing carbon and energy footprints compared to metal. We encourage customers to consider this data when selecting materials for automotive parts.”

In the European Union, 95 percent of all passenger cars must achieve 95 g/km of carbon dioxide (CO2) by 2020 with 100 percent compliance by 2021.¹ In China and Japan the requirements are 117 g/km of CO2 and 122 g/km of CO2, respectively, by 2020.

Assessment Parameters and Results

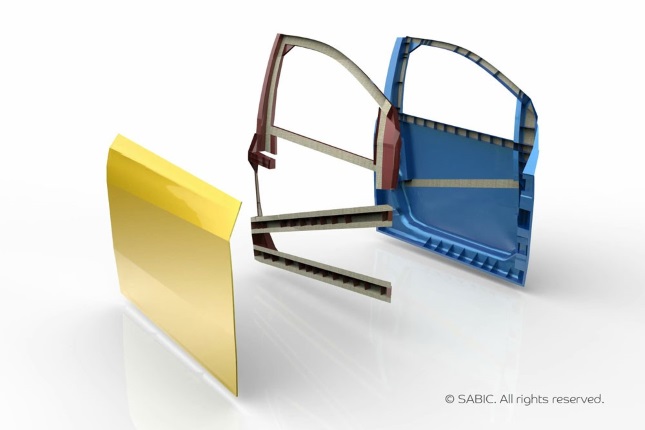

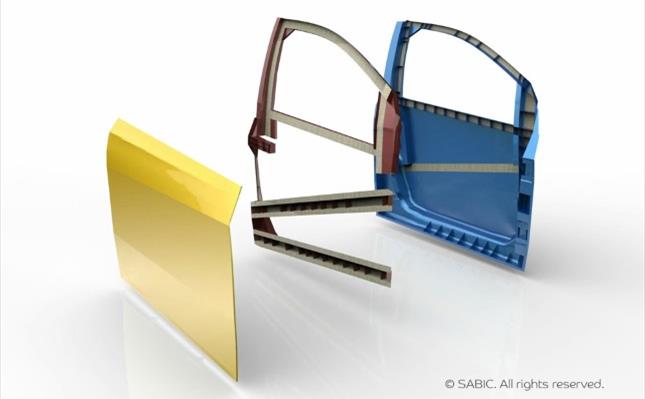

The lifecycle assessment, performed in compliance with ISO 14040/44, compared a side door of a passenger car (a typical sedan) made with thermoplastic matrix composites comprising of UDMAX GPP 45-70 tape combined with an injection-molded grade of glass-filled thermoplastic resin, to identical doors made of steel, aluminum and magnesium. Based on the design specifications, the UDMAX tapes were converted into a laminate and then overmolded onto both sides of a substrate using SABIC’s STAMAX™ glass reinforced polypropylene product, creating a hybrid material system. Parameters for vehicle operation were based on three powertrains – internal combustion (no adaptation), plug-in hybrid and electric – operating over a lifetime of 200,000 km using the New European Driving Cycle.

The results for the internal combustion powertrain showed that the thermoplastic composite doors achieved lower global warming potential than any of the three metal doors: 26 percent lower than steel, 21 percent lower than aluminum and 37 percent lower than magnesium. These numbers were slightly different for the hybrid and electric powertrains.

For cumulative energy demand, the thermoplastic composite doors also achieved lower numbers than the metal doors: 10 percent less than steel, 13 percent less than aluminum and 26 percent less than magnesium for the internal combustion powertrain. Again, the results were slightly different for the hybrid and electric powertrains.

Key reasons for these results begin with the lighter weight of the UDMAX GPP based laminate as part of the application:

• 40 percent lighter vs. steel
• 15 percent lighter vs. aluminum
• 7 percent lighter vs. magnesium

¹ EU CO2 standards for passenger cars and light-commercial vehicles. https://www.theicct.org/publications/eu-co2-standards-passenger-cars-and-light-commercial-vehicles
